Fiamma F80S Motorhome and Campervan Wind Out Awning

The Fiamma F80S Roof Mounted Campervan and Motor home awning canopy is the latest Fiamma wind out awning.

SPECIAL OFFER – COLLECTION ONLY

ID	SKU	JC-SP-	Title	Condition	Special Price	Retail Price
aw6	07830D01R	1556	F80 370 (RG/PW)	Broken lead rail end caps x2	£734.00	£769.00

Fiamma’s latest F80S Campervan and Motor home awning has been designed with an aluminium casing providing extra strength whilst remaining lightweight and able to follow the contours of modern vehicles giving a neater, sleeker look that’s less obtrusive and more versatile. With a wide range of new features the Fiamma F80S Awning Canopy is supplied with a Triple Guide lead bar allowing multiple accessories to be fitted to the F80S Awning Canopy as well as dual LED predefined housing for the optional extra LED Strip Kit and the option of fitting a Motor Kit at a later date.

The Fiamma F80S Wind Out Awning is provided without brackets though these can be easily bought by choosing the most suitable to your vehicle by making note of the make, model and year the vehicle was produced, it replaces the Fiamma F65s

Fiamma F80S Features:

Dual LED Predefined position in lead bar + case: housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar
Compact section: case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than F65s model

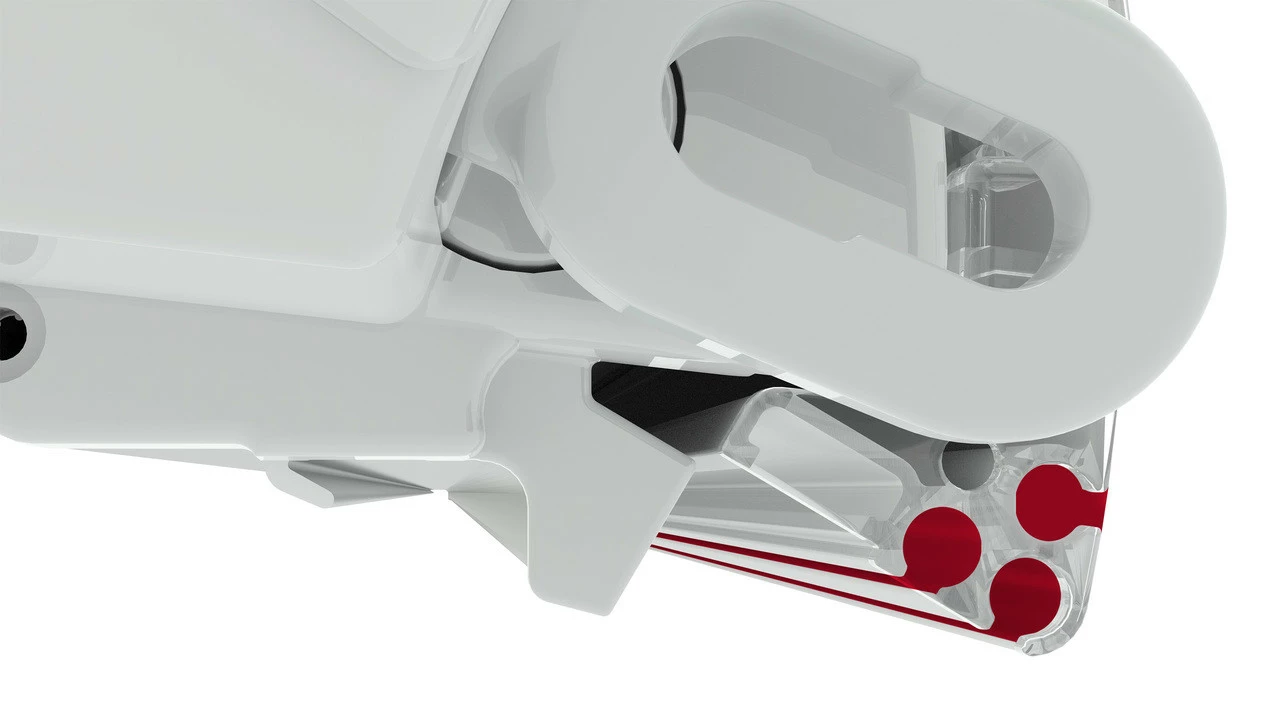

Triple Guide: three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
Aluminium end caps: new design for the aluminium end caps for maximum strength
Extra-Strong Arms: wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
Rafter: central tension rafter in aluminium delivered as standard for awnings from 400cm long

Fiamma F80S Motorhome And Campervan Roof Mounted Awning -Campervan Specific Shop moved 053bd821cf50a2f4e7a615b16dc02a7e

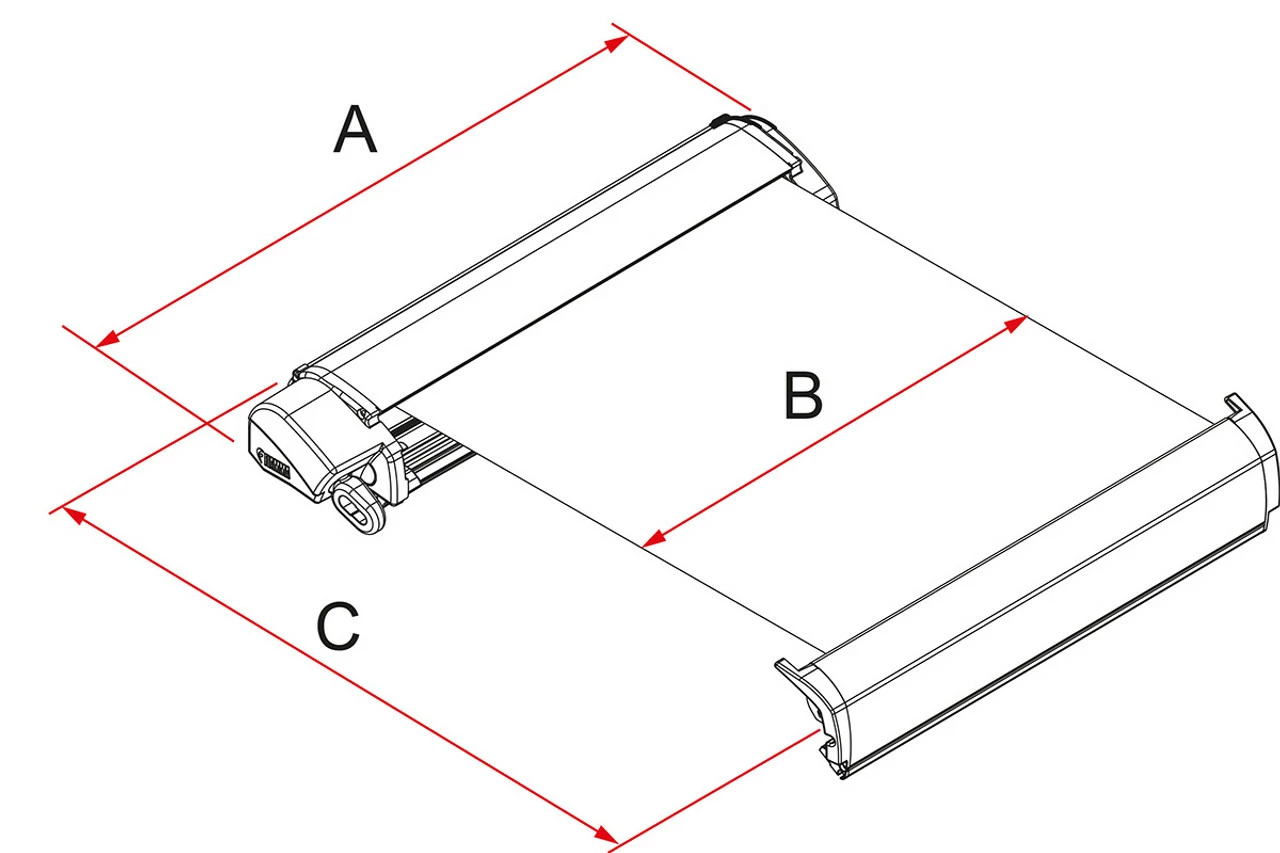

Description	Awning Length A	Canopy Length B	Extension	Shade Surface	Weight
F80 S 290	290 cm	278 cm	200 cm	5.6 m²	27 Kg
F80 S 320	320 cm	308 cm	250 cm	7.7 m²	29 Kg
F80 S 340	340 cm	328 cm	250 cm	8.2 m²	30 Kg
F80 S 370	370 cm	358 cm	250 cm	9.0 m²	32 Kg
F80 S 400*	400 cm	388 cm	250 cm	9.7 m²	34 Kg
F80 S 425*	425 cm	412 cm	250 cm	10.3 m²	35 Kg
F80 S 450*	450 cm	431 cm	250 cm	10.8 m²	36.5 Kg

* 1 Tension Rafter made of anodized aluminium

Fiamma F80 Awning Installation

Please note brackets are sold separately and are vehicle specific, vehicles with roofracks may require alternative brackets for installation. F80s awnings are only compatible with F65/ F80s adapters and NOT F45s

If the incorrect awning is ordered collection charges and restock fees will apply.

Please note due to the size of this item shipping prices for Northern Ireland, off Shore Islands and Scottish Highlands may incur an additional charge.
